Edan SonoTrax Basic Fetal Doppler
Edan SonoTrax Basic Fetal Doppler
Item# Sonotrax-Basic
Regular price: $199.99
Sale price: $135.00
Probe Options:
Availability: Usually ships the same business day

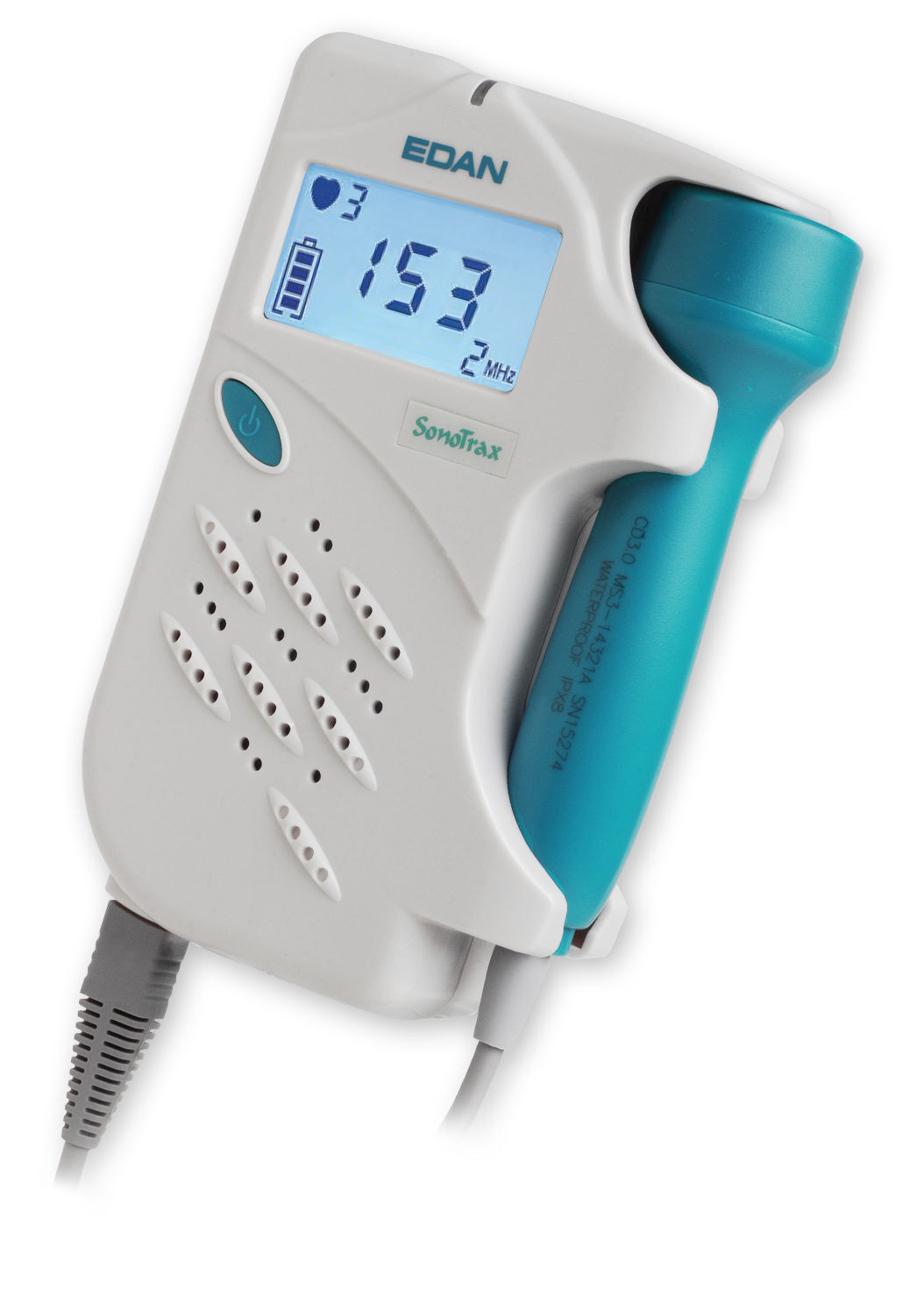

Edan SonoTrax Basic Fetal Doppler, Baby Heart Monitor


The SonoTrax Basic Fetal Doppler is a user-friendly digital heart monitor for mothers or health care professionals to hear the sound of the fetal heartbeat and read fetal heart rate (FHR). This fetal doppler includes auto and manual modes to select based on the user's preference. The auto mode uses real-time FHR and averaged FHR measurement configurations for fetal heartbeat monitoring. With the manual mode, a view of the fetal heart rate updates in 5 or 10-second intervals for a calculated measurement.

Monitor information and user interface options display on the built-in LCD screen. The interface includes FHR, a battery status indicator, probe type, and different display modes. The baby doppler's waterproof probe provides acoustically accurate ultrasound of a fetal heartbeat while submerged in up to 3 feet of water for up to 5 hours (the primary doppler unit is not submersible).

This baby fetal doppler includes a protective carrying case for holding the doppler and its accessories. The SonoTrax Basic Fetal Doppler also features a headphone jack that outputs a digital audio signal for recording, saving, and sharing audio using a computer. The audio level of the speaker is adjustable between different volume settings.

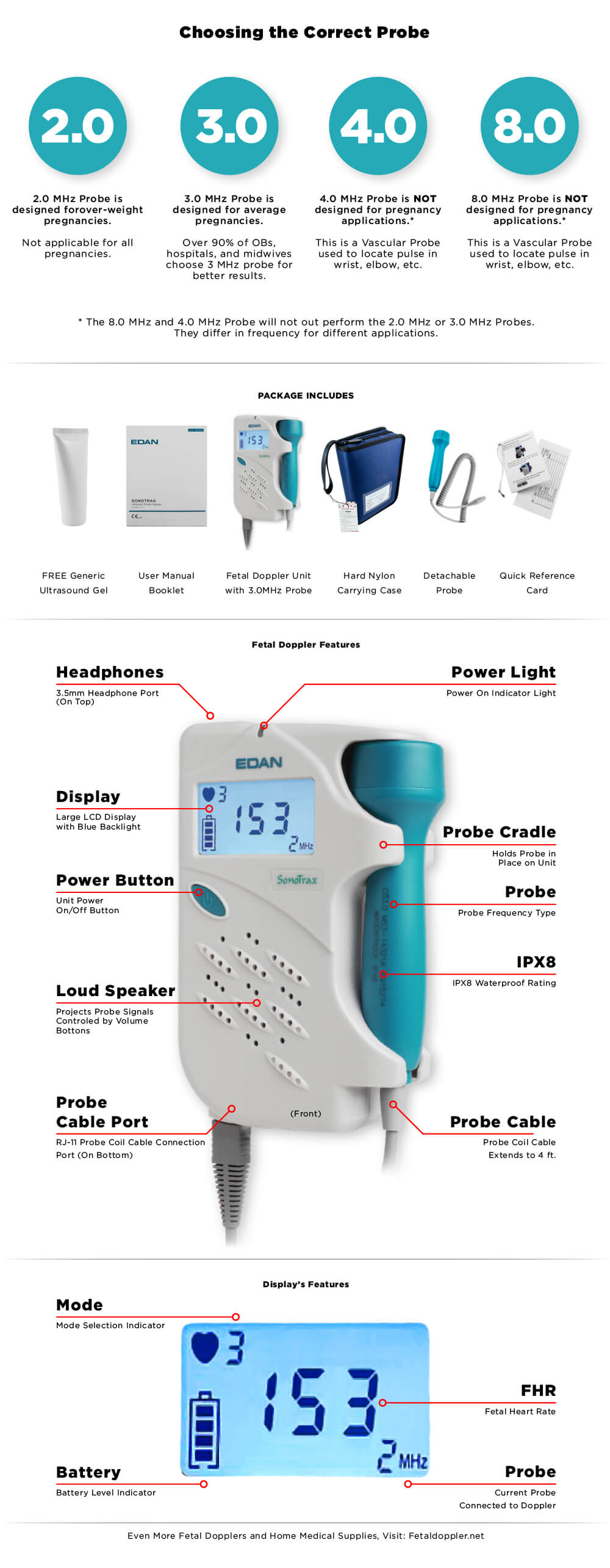

JPD100B

If you are pregnant and want to hear the baby's heartbeat, please choose the 3Mhz or 2mhz probe.
The 4Mhz and 8Mhz probe are not for hearing the baby's heartbeat





The 2.0MHz probe was designed to accommodate late-term and obese pregnancies since it works best at 10 cm and larger depths.

A 3.0MHz is more sensitive than a 2 Mhz probe and can pick up a baby's heartbeat as early as 8-10 weeks gestation.

The 4.0MHz & 8.0MHz are utilized for vascular monitoring, and the 8MHz is used for superficial vascular monitoring.

Features


  1. Ultrasonic Doppler with LCD Display and 3MHz probe (Waterproof)
  2. Fetal Doppler is a handheld unit that allows any user to comfortably hold the device while checking for the fetal heartbeat
  3. Different modes provide different intervals and time measurements for the FHR
  4. The battery allows 13 hours of continuous use or approximately slightly less than a thousand 1 minute sessions
  5. Auto Shut Off after 1 minute of no operation or no signal
  6. Adjustable Volume and/or Listen to the Doppler through Headphones
  7. Easy-to-use & compact
  8. Audio output for earphones or recording to your PC
  9. Built-in speaker
  10. Waterproof probe
  11. Free carrying case included
  12. LCD display
  13. Auto and manual counting
  14. Low voltage indicator
  15. Accurate FHR detection as early as 10 weeks
  16. Earphone jack to listen with earphones
  17. Automatically Power-off
  18. FDA & CE Approved
  19. 1-year warranty


Package Includes


  1. Edan SonoTrax Basic Professional Fetal Doppler Unit
  2. Fetal Doppler Probe (Default Probe 3.0MHz, OPTIONAL: 2.0MHZ, 4.0MHZ and 8.0MHZ)
  3. Free Transmission Gel
  4. Durable Nylon Hard Carrying Case
  5. Extensive Owners Manual
  6. Long Recording Cable
  7. Quick Reference Card


This product is not a diagnostic instrument. It is not an approved device for the treatment or prevention of medical conditions. All activity that is monitored and viewed with the device should not be considered a medical conclusion. The use of the machine provides audio and heart rate value that is for non-medical purposes only. For questions regarding medical conditions, please consult with a medical health professional.



Extended Specifications


FHR Range: 50bpm - 210bpm
Resolution: 1bpm
Accuracy: (+/-)3bpm
Audio Sampling Frequency: 4KHz/8KHz
Audio Output Power: 0.5W
Temperature: 40F - 100F (4C- 40C)
Humidity: 80% or less
Atmospheric Pressure: 860hPa - 1060hPa
Size: 1.3 (length) x 3.3 (width) x 5.4 (height)
Weight: 0.63lbs (0.28kg)
Power Source: 2x AA Alkaline batteries
1 Year Limited Warranty
